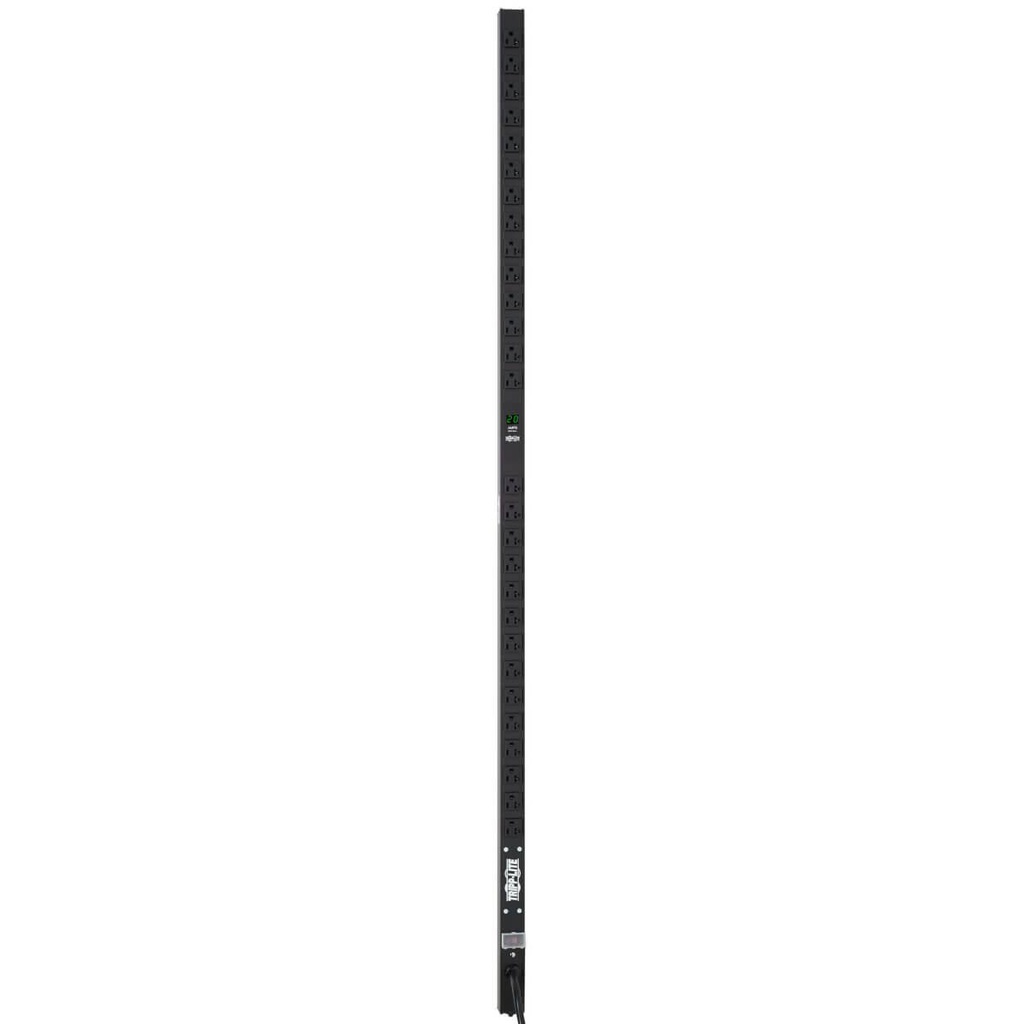

Unité de distribution électrique (PDU) Tripp Lite PDUMV20

Tripp Lite PDUMV20. Types de PDU: Avec mesure en ligne, Capacité du rack: 0U, Montage: verticale. Nombre de prises en sortie: 28 sortie(s) CA, Types de sortie AC: NEMA 5–15, NEMA 5–20R, Type de connexion d'entrée: NEMA 5-20P, NEMA L5-20P. Longueur de câble: 4,6 m, Certification: UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada). Tension nominale à l'entrée: 100-127 V, Intensité (max.): 20 A, Fréquence d'entrée AC: 50 - 60 Hz. Largeur: 38,1 mm, Profondeur: 41,7 mm, Dimensions (LxPxH): 44,5 x 31,8 x 1524 mm

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter
- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets
- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
