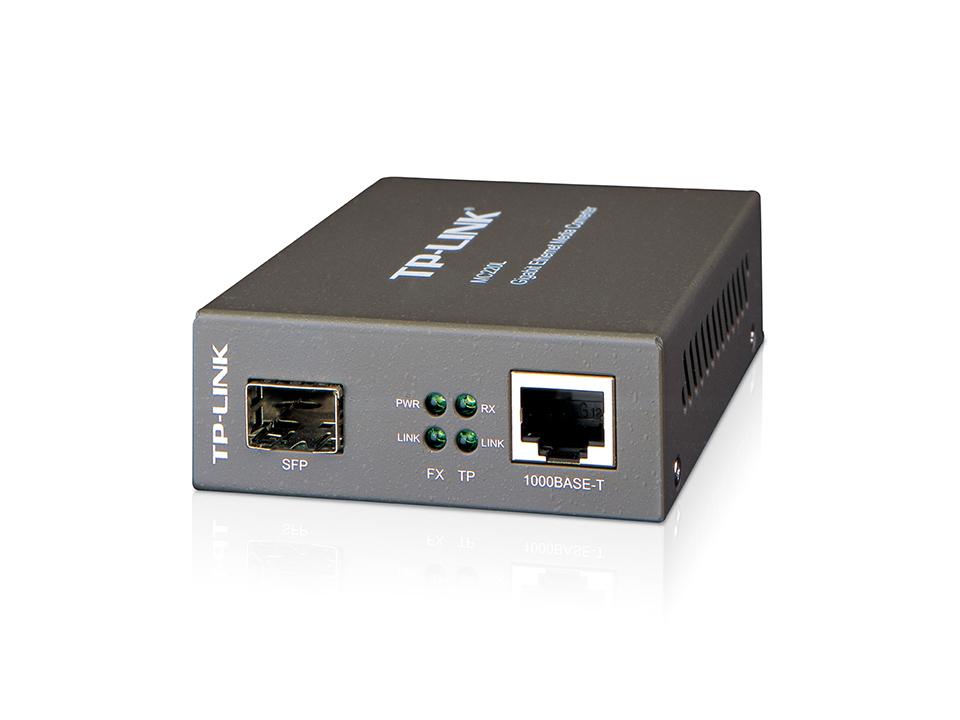

TP-Link MC220L 1x 1000M SC, 1x 1000M RJ45, IEEE 802.3ab & IEEE 802.3z
Fabricant:
TP-LINK
Numéro de produit:MC220L
Garantie du fabricant:Garantie limitée de 3 ans
Voir la fiche produit sur le site du fabricant.TP-Link MC220L, 1000 Mbit/s, IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s, UTP 5e, 5, SFP
TP-Link MC220L. Débit de transfert des données maximum: 1000 Mbit/s, Standards réseau: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Type d'interface Ethernet: Gigabit Ethernet. Connecteur de fibre optique: SFP, Technologie de connectivité: Avec fil. Distance de transfert maximale: 10000 m, Structure du mode de fibre: Multimode, Monomode. Voyants: Liaison, Couleur du produit: Noir, Conformité aux standards industriels: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. Consommation (max): 1,7 W
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
