Tripp Lite SRBOLTDOWN rack accessory
Manufacturier:
TRIPP LITE
Product Number:SRBOLTDOWN
Manufacturer Warranty:5-year limited
See the product sheet on the manufacturer's website.Rack Enclosure Server Cabinet Stabilizing Bolt Down Kit
Tripp Lite SRBOLTDOWN SmartRack Bolt-Down Kit - Secures stabilizing brackets or plates to facility floor. Product colour: Aluminium, Country of origin: China. Package width: 104.9 mm, Package depth: 152.9 mm, Package height: 26.9 mm. Master (outer) case width: 224.8 mm, Master (outer) case length: 329.9 mm, Master (outer) case height: 194.8 mm

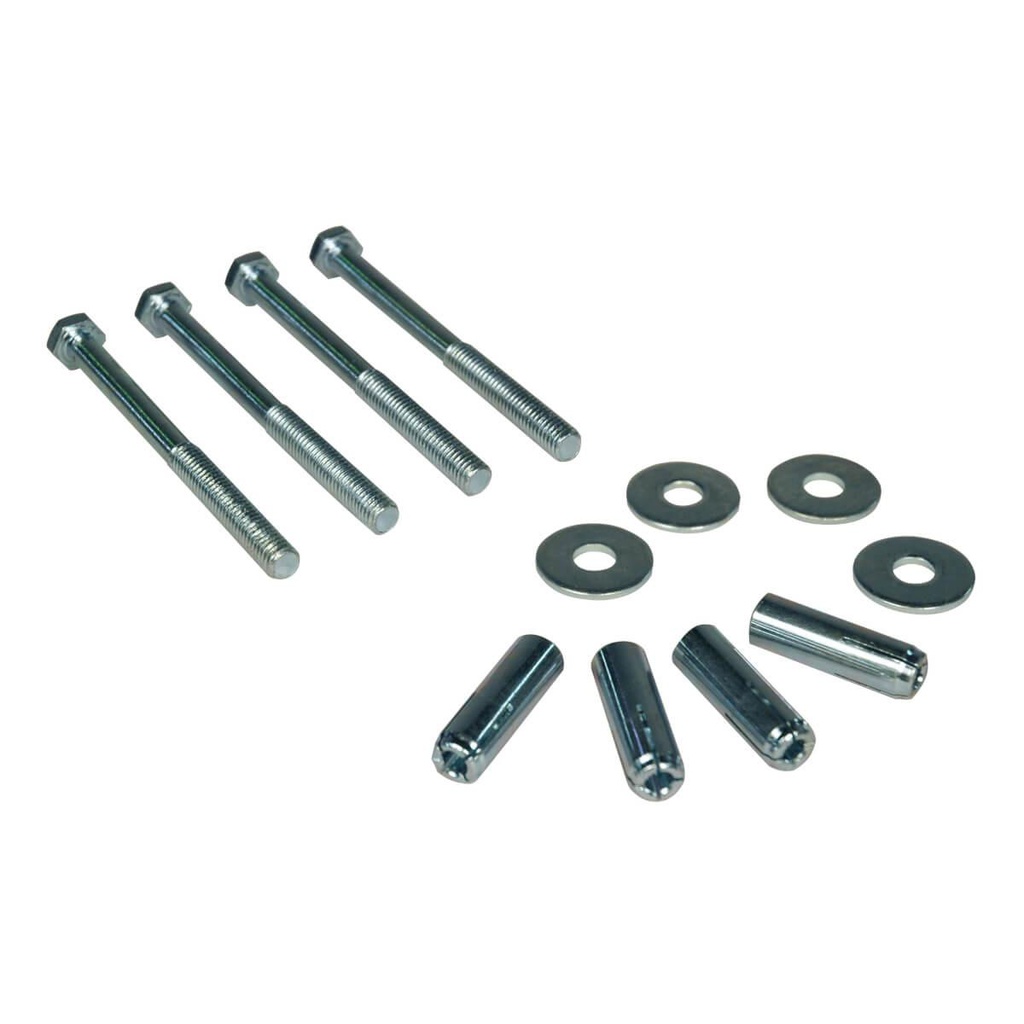

Tripp Lite's SmartRack SRBOLTDOWN provides extreme stabilization and security for cabinets and racks. The bolt-down kit enables SmartRack to be secured to a concrete floor. SRBOLTDOWN includes four concrete inserts, four bolts and four fender washers.
Technical Notes:
We recommend using a 1/2" concrete drill. Hole must be 4.5" to 4.75" deep. Mark the hole, drill the hole, then tap the anchor into the hole. Thread the bolt into the anchor a few threads only. Tap the bolt with a hammer (with anchor attached) until it bottoms out in the hole, then tighten the bolt.
Provides extreme stabilization and security for cabinets and racks
The bolt-down kit enables SmartRack to be secured to a concrete floor
Includes four concrete inserts, four bolts and four fender washers
Tripp Lite's SmartRack SRBOLTDOWN provides extreme stabilization and security for cabinets and racks. The bolt-down kit enables SmartRack to be secured to a concrete floor. SRBOLTDOWN includes four concrete inserts, four bolts and four fender washers.
Technical Notes:
We recommend using a 1/2" concrete drill. Hole must be 4.5" to 4.75" deep. Mark the hole, drill the hole, then tap the anchor into the hole. Thread the bolt into the anchor a few threads only. Tap the bolt with a hammer (with anchor attached) until it bottoms out in the hole, then tighten the bolt.
Provides extreme stabilization and security for cabinets and racks
The bolt-down kit enables SmartRack to be secured to a concrete floor
Includes four concrete inserts, four bolts and four fender washers
