StarTech.com ICUSB2324852 interface cards/adapter
Manufacturier:
STARTECH.COM
Product Number:ICUSB2324852
Manufacturer Warranty:2 Years
See the product sheet on the manufacturer's website.Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB -
StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention. Host interface: USB Type-B, Output interface: Serial, Serial interface type: RS-232/422/485. Product colour: Grey, LED indicators: Power. Chipset: FTDI - FT2232H, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 128 B. Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows...

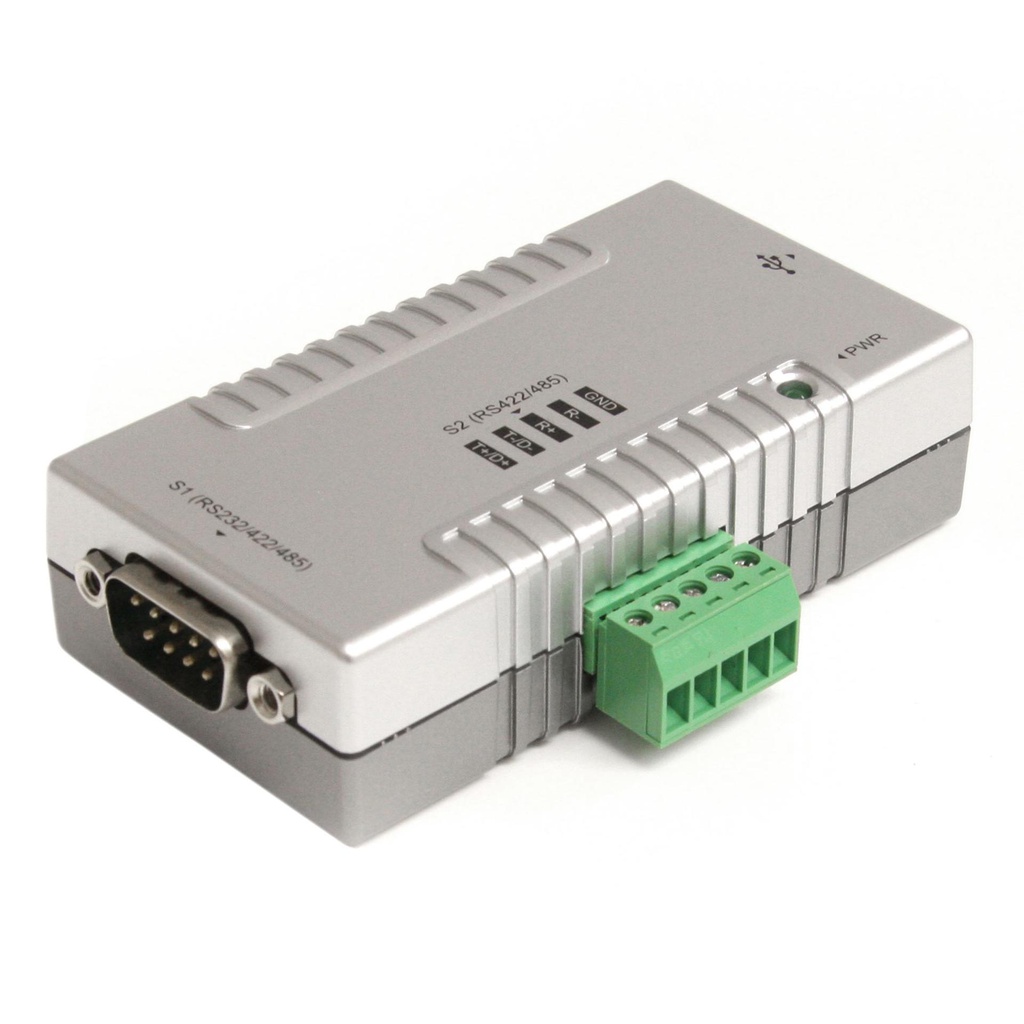

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This single adapter is compatible with any serial device protocol (RS232, RS422, and RS485), and even allows mixing protocols for simultaneous communication over both ports
- COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free
- USB Powered - no power outlet required, and no cumbersome AC adapter to carry around
The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This single adapter is compatible with any serial device protocol (RS232, RS422, and RS485), and even allows mixing protocols for simultaneous communication over both ports
- COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free
- USB Powered - no power outlet required, and no cumbersome AC adapter to carry around
