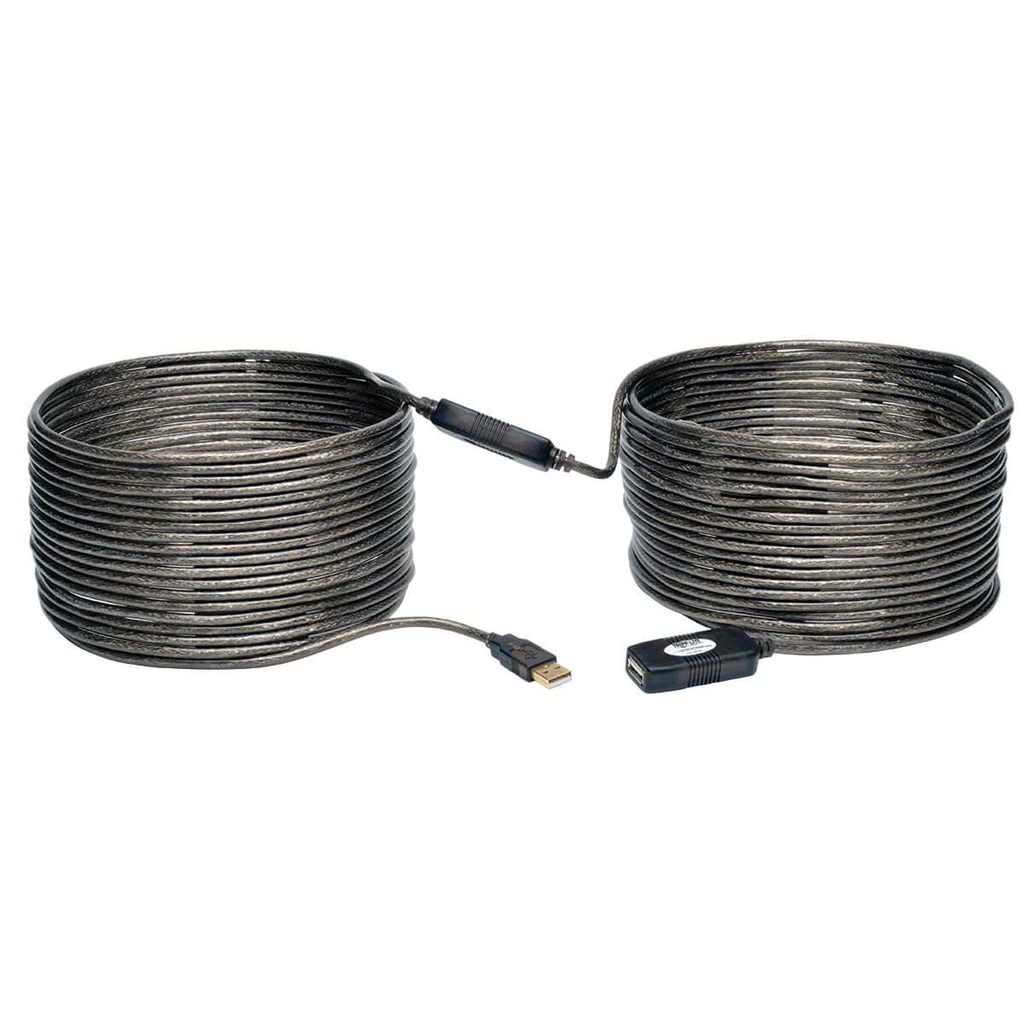

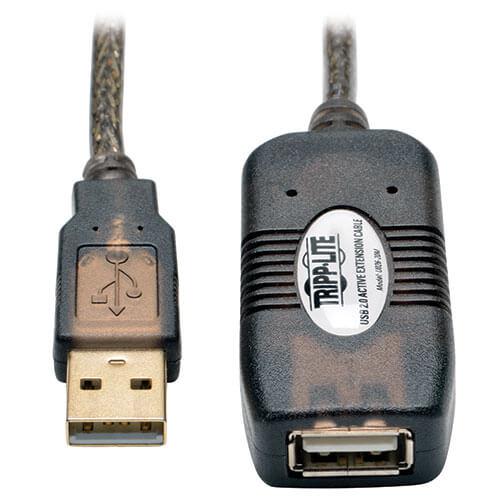

Tripp Lite USB 2.0 Active Extension Repeater Cable (A M/F), 20M (65.61 ft.)
Manufacturier:
TRIPP LITE
Product Number:U026-20M
Manufacturer Warranty:3-year limited
See the product sheet on the manufacturer's website.Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable (A M/F), 20M (65.61 ft.), 20 m, USB A, USB A, USB 2.0, 480 Mbit/s, Grey
Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable (A M/F), 20M (65.61 ft.). Cable length: 20 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 480 Mbit/s, Connector contacts plating: Gold, Product colour: Grey
Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131-ft. (39.92 m) by daisy chaining up to 2 of active cables. Standard 6-ft. (1.83 m), 10-ft. (3.05 m), or 15-ft. (4.57 m) USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).
Maximum Extension Distance
: Daisy-chain up to two 20m cables for a complete distance extension of up to 131-ft. (39.92 m)
Error-Free Signal Transfer
: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
Universal Compatibility
: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
Power Capacity
: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
Premium Cabling
: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality
Gold-Plated Connectors
: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
Signal Booster
: The built-in signal booster regenerates a USB signal for high quality and long extension distances
RoHS Compliance
: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
Plug and Play Convenience
: no software to load
Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131-ft. (39.92 m) by daisy chaining up to 2 of active cables. Standard 6-ft. (1.83 m), 10-ft. (3.05 m), or 15-ft. (4.57 m) USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).
Maximum Extension Distance
: Daisy-chain up to two 20m cables for a complete distance extension of up to 131-ft. (39.92 m)
Error-Free Signal Transfer
: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
Universal Compatibility
: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
Power Capacity
: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
Premium Cabling
: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality
Gold-Plated Connectors
: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
Signal Booster
: The built-in signal booster regenerates a USB signal for high quality and long extension distances
RoHS Compliance
: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
Plug and Play Convenience
: no software to load
