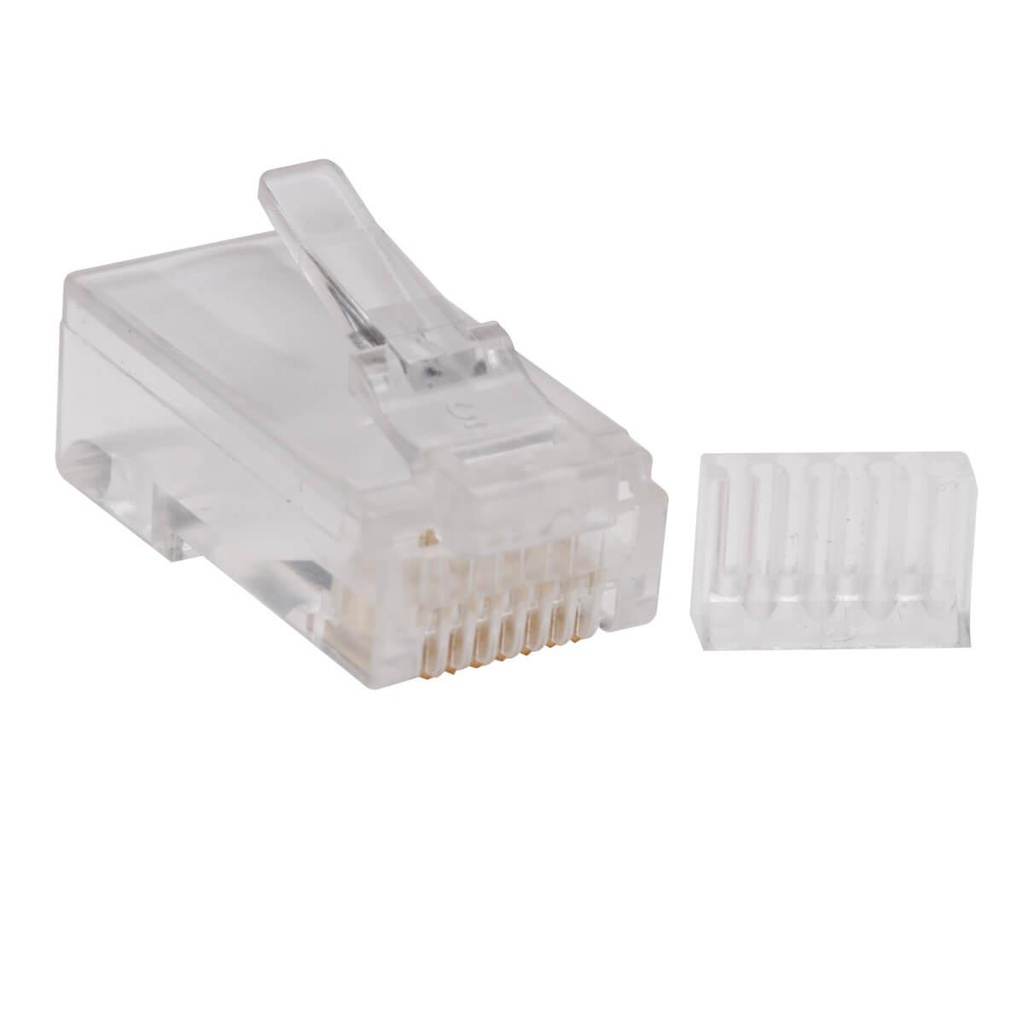

Tripp Lite N230-100 wire connector
Manufacturier:
TRIPP LITE
Product Number:N230-100
Manufacturer Warranty:Lifetime limited
See the product sheet on the manufacturer's website.Cat6 RJ45 Modular Connector Plug with Load Bar, Solid/Stranded Conductor Round C
Tripp Lite N230-100 Cat6 RJ45 Modular Connector Plug with Load Bar, Solid/Stranded Conductor Round Cat6 Wire, 100-pack. Connector(s): RJ-45, Product colour: Transparent, Connector contacts plating: Gold. Quantity per pack: 100 pc(s). Package width: 180.3 mm, Package depth: 12.7 mm, Package height: 221 mm. Country of origin: Taiwan, Master (outer) case width: 299.7 mm, Master (outer) case length: 248.9 mm
Tripp Lite Cat6 RJ45 plugs can be used with Solid or Stranded conductor Cat6 wire. Included Load-Bars add to ease of termination and virtually foolproof results. Staggered Up-Down design for enhanced performance and reduction of Near End Cross-talk ( NEXT). 50 micro-inch gold contacts for durability and longevity. Polycarbonate housing, UL94-V2.
Unshielded Cat6 RJ45 plug with Load-Bar for easy termination
50 micron Gold plating
Use with Solid or Stranded conductor 4-pair Cat6 cable
Staggered nose pattern reduces NEXT
Works with most available RJ45 crimp tools ( excluding AMP )
Supports cable jacket OD's between 4.5mm to 6.3mm
Supports individual twisted pair conductor wire sizes up to 1.1mm.
Tripp Lite Cat6 RJ45 plugs can be used with Solid or Stranded conductor Cat6 wire. Included Load-Bars add to ease of termination and virtually foolproof results. Staggered Up-Down design for enhanced performance and reduction of Near End Cross-talk ( NEXT). 50 micro-inch gold contacts for durability and longevity. Polycarbonate housing, UL94-V2.
Unshielded Cat6 RJ45 plug with Load-Bar for easy termination
50 micron Gold plating
Use with Solid or Stranded conductor 4-pair Cat6 cable
Staggered nose pattern reduces NEXT
Works with most available RJ45 crimp tools ( excluding AMP )
Supports cable jacket OD's between 4.5mm to 6.3mm
Supports individual twisted pair conductor wire sizes up to 1.1mm.
