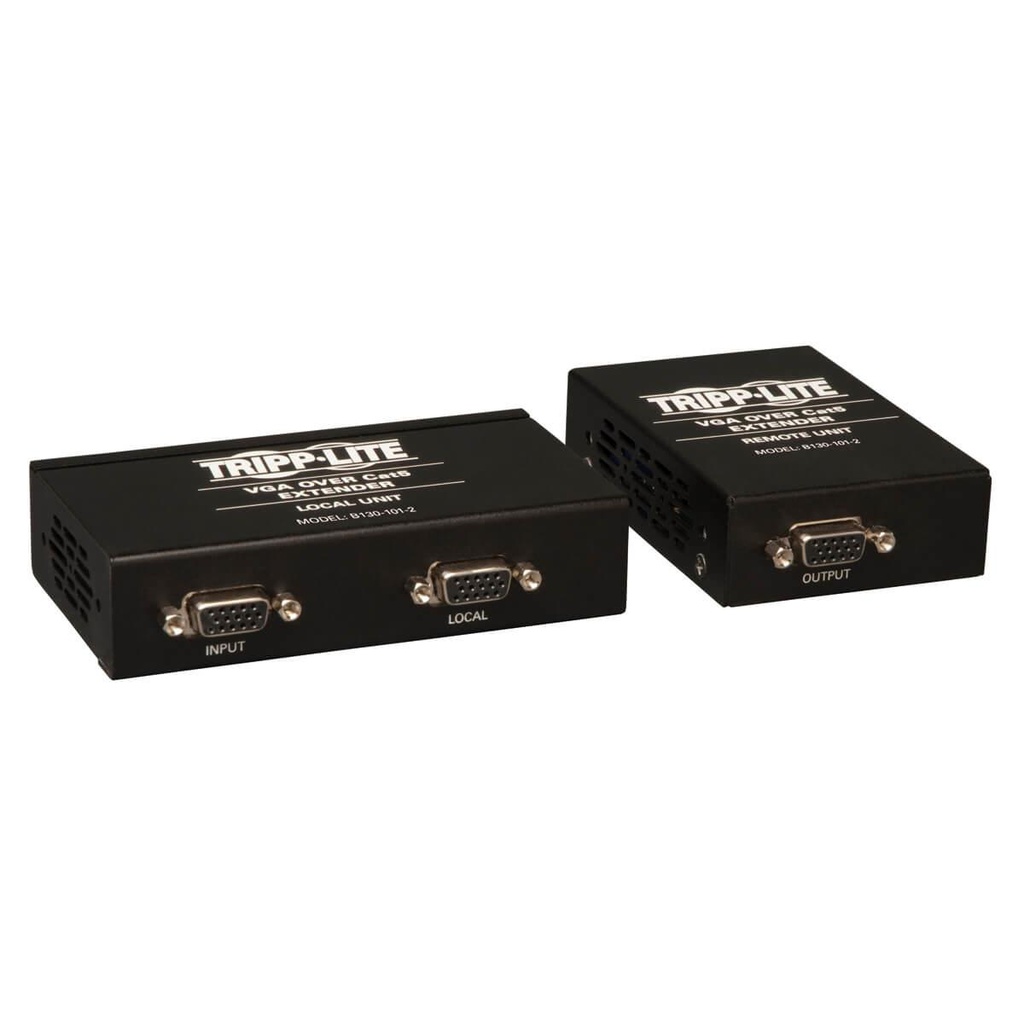

Tripp Lite B130-101-2 AV extender
Manufacturier:
TRIPP LITE
Product Number:B130-101-2
Manufacturer Warranty:1-year limited warranty
See the product sheet on the manufacturer's website.VGA over Cat5/Cat6 Extender Transmitter & Receiver w/ EDID TAA
Tripp Lite VGA over Cat5/Cat6 Extender Kit, Box-Style Transmitter & Receiver with EDID, 1920x1440 at 60Hz, Up to 305 m. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5e, Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 213.4 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 589.3 mm, Master (outer) case length: 348 mm, Master (outer) case height: 241.3 mm
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A (Video Only) repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 152 m from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 305 m from the first repeater in the chain to the last receiver. For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
● Extends a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
● EDID copy feature ensures optimal display compatibility
● Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
● Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors.
● A 1920 x 1440 (60Hz) signal can be extended up to 152 m from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 305 m from the first repeater in the chain to the last receiver.
● For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K
● The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
● Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted
● Ideal for digital signage situations, such as retail, schools, churches, etc.
● Extends a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
● Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
● EDID copy feature ensures optimal display compatibility
● For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K
System Requirements
● For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia
Package Includes
● Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
● Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
● Mini-Screwdriver for EQ/Gain adjustment
● (x2) Mounting Hardware Kits
● (x2) External Power Supplies with NEMA 1-15P Plug(Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A, 1.52 m)
● Owner's Manual
Batteries not Required to Operate
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A (Video Only) repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 152 m from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 305 m from the first repeater in the chain to the last receiver. For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
● Extends a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
● EDID copy feature ensures optimal display compatibility
● Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
● Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors.
● A 1920 x 1440 (60Hz) signal can be extended up to 152 m from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 305 m from the first repeater in the chain to the last receiver.
● For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K
● The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
● Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted
● Ideal for digital signage situations, such as retail, schools, churches, etc.
● Extends a 1920 x 1440 (60Hz) video signal up to 152 m, or a 1024 x 768 (60Hz) video signal up to 305 m, when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
● Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
● EDID copy feature ensures optimal display compatibility
● For optimal image quality between 152 m and 305 m, use Zero-Skew cable, such as Tripp Lite P524-01K
System Requirements
● For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia
Package Includes
● Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
● Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
● Mini-Screwdriver for EQ/Gain adjustment
● (x2) Mounting Hardware Kits
● (x2) External Power Supplies with NEMA 1-15P Plug(Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A, 1.52 m)
● Owner's Manual
Batteries not Required to Operate
