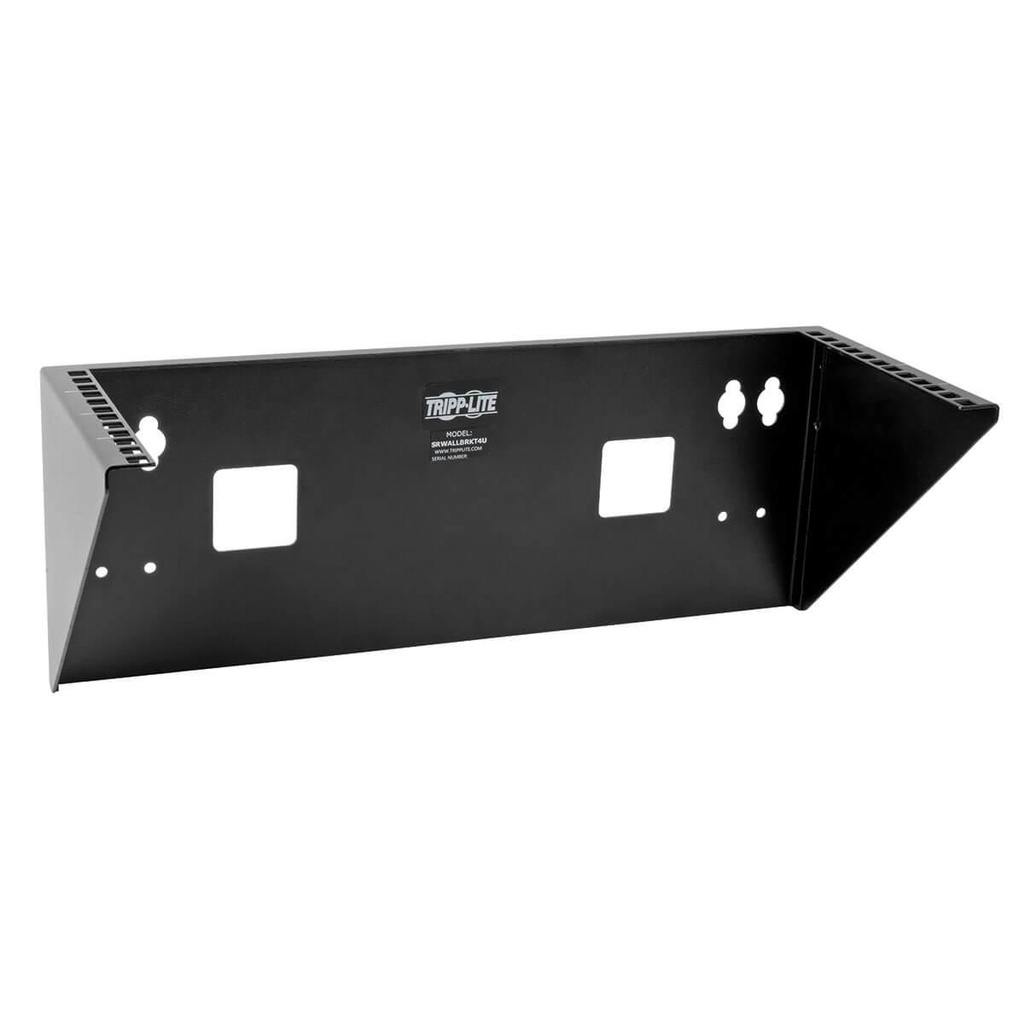

Tripp Lite SmartRack 4U Vertical Wall-Mount Rack Bracket (SRWALLBRKT4U)
Manufacturier:
TRIPP LITE
Product Number:SRWALLBRKT4U
Manufacturer Warranty:5-year limited
See the product sheet on the manufacturer's website.Tripp Lite SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket, Mounting plate, Black, Steel, 79 kg, 4U, China
Tripp Lite SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket. Type: Mounting plate, Product colour: Black, Housing material: Steel. Size (imperial): 48.3 cm (19"), Width: 500.1 mm, Depth: 194.6 mm. Quantity per pack: 1 pc(s), Package width: 555 mm, Package depth: 340.1 mm. Master (outer) case width: 570 mm, Master (outer) case length: 1045 mm, Master (outer) case height: 430 mm
The SRWALLBRKT4U SmartRack® 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch wall-mount rack.
Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.
Use the included hardware to attach your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 lbs (79.4 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT4U is compatible with most EIA-standard 19-inch two-post rack equipment.
4U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
Recommended for home offices and small businesses with no room for standard 19 in. rack
Provides open, unrestricted access to equipment and cabling
Maximum load capacity of 175 lbs (79.4 kgs)
Cold-rolled steel construction with black powder-coated finish designed for long life
Ships fully assembled for quick installation
Attaches to the Wall with User-Supplied Hardware
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Also mounts horizontally beneath a desk or workbench
Component hangs flush against the wall for unrestricted out-of-the-way access
Compatible with EIA-Standard 19 in. 2-Post Rack Equipment
Hardware included for mounting 4U rack equipment
Rails support square-hole mounting
The SRWALLBRKT4U SmartRack® 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch wall-mount rack.
Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.
Use the included hardware to attach your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 lbs (79.4 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT4U is compatible with most EIA-standard 19-inch two-post rack equipment.
4U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
Recommended for home offices and small businesses with no room for standard 19 in. rack
Provides open, unrestricted access to equipment and cabling
Maximum load capacity of 175 lbs (79.4 kgs)
Cold-rolled steel construction with black powder-coated finish designed for long life
Ships fully assembled for quick installation
Attaches to the Wall with User-Supplied Hardware
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Also mounts horizontally beneath a desk or workbench
Component hangs flush against the wall for unrestricted out-of-the-way access
Compatible with EIA-Standard 19 in. 2-Post Rack Equipment
Hardware included for mounting 4U rack equipment
Rails support square-hole mounting
